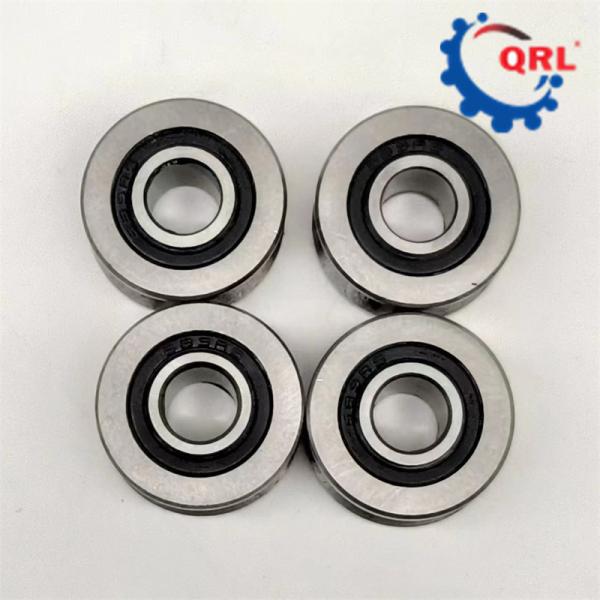

U608 Deep Groove Ball Bearing U-shaped groove 8X22X9MM
Deep Groove Ball Bearing Specification
- Coatings: bearing steel
- Package: 10 pieces from U608
- Out diameter: 22mm
- Inner diameter: 8 mm
- Thickness: 9 mm
Deep Groove Ball Bearing Description
Ball Bearing63/28 2RS all Bearings, the63/28 2RS inner diameter is 40 mm, 63/28 2RS outer diameter is 90 mm and the 63/28 2RS width is 23mm, 6302rmx is a popular size that could be used in many applications,63/28 2RS Bearings are made of Chrome Steel, 63/28 2RS can rotate up to 5300 rpm,63/28 2RS bearing has 2 Blue Rubber Seals to protect the bearing from dust or any possible contamination, 63/28 2RS bearings are pre-lubricated with grease. * Item:63/28 2RS 6302rmx Chrome Steel - Radial Deep Groove Ball Bearings * Size: 28x72x18mm
Deep Groove Ball Bearing Product number
| Model | d | D | H | Cr | Cor | grease | oil | weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) |
| 6300 | 10 | 35 | 11 | 7.65 | 3.48 | 18000 | 24000 | 0.053 |
| 6301 | 12 | 37 | 12 | 9.72 | 5.08 | 17000 | 22000 | 0.06 |
| 6302 | 15 | 42 | 13 | 11.5 | 5.42 | 16000 | 20000 | 0.082 |
| 6303 | 17 | 47 | 14 | 13.5 | 6.58 | 15000 | 18000 | 0.115 |
| 6304 | 20 | 52 | 15 | 15.8 | 7.88 | 13000 | 16000 | 0.142 |
| 6305 | 25 | 62 | 17 | 20.6 | 11.3 | 11000 | 13000 | 0.232 |
| 6306 | 30 | 72 | 19 | 26.7 | 15 | 6600 | 12000 | 0.346 |
| 6307 | 35 | 80 | 21 | 33.4 | 19.3 | 8500 | 10000 | 0.457 |
| 6308 | 40 | 90 | 23 | 40.8 | 24 | 7000 | 8500 | 0.639 |
| 6309 | 45 | 100 | 25 | 52.8 | 31.8 | 6300 | 7500 | 0.837 |
Deep Groove Ball Bearing Applications
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2. Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
4. The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
5. Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6. Car: truck, road, bus, car, modified car, motorcycle ,etc.
